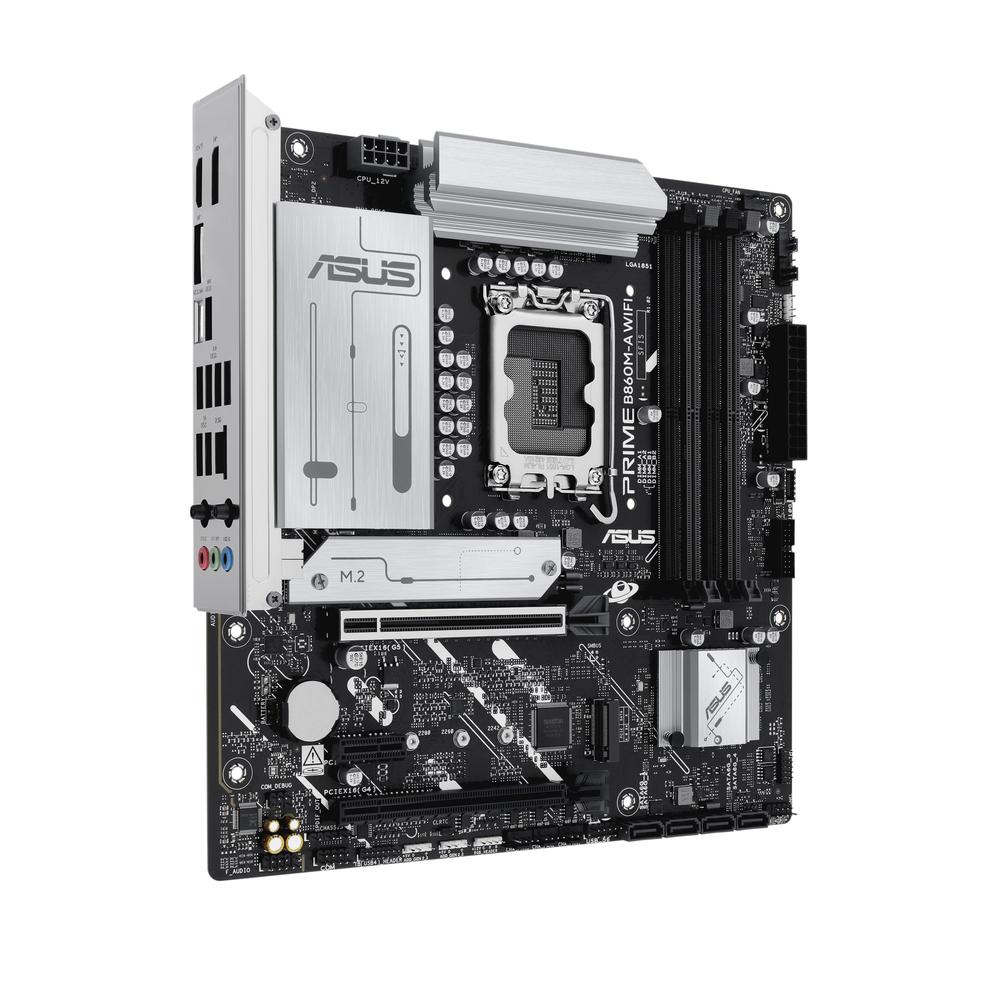

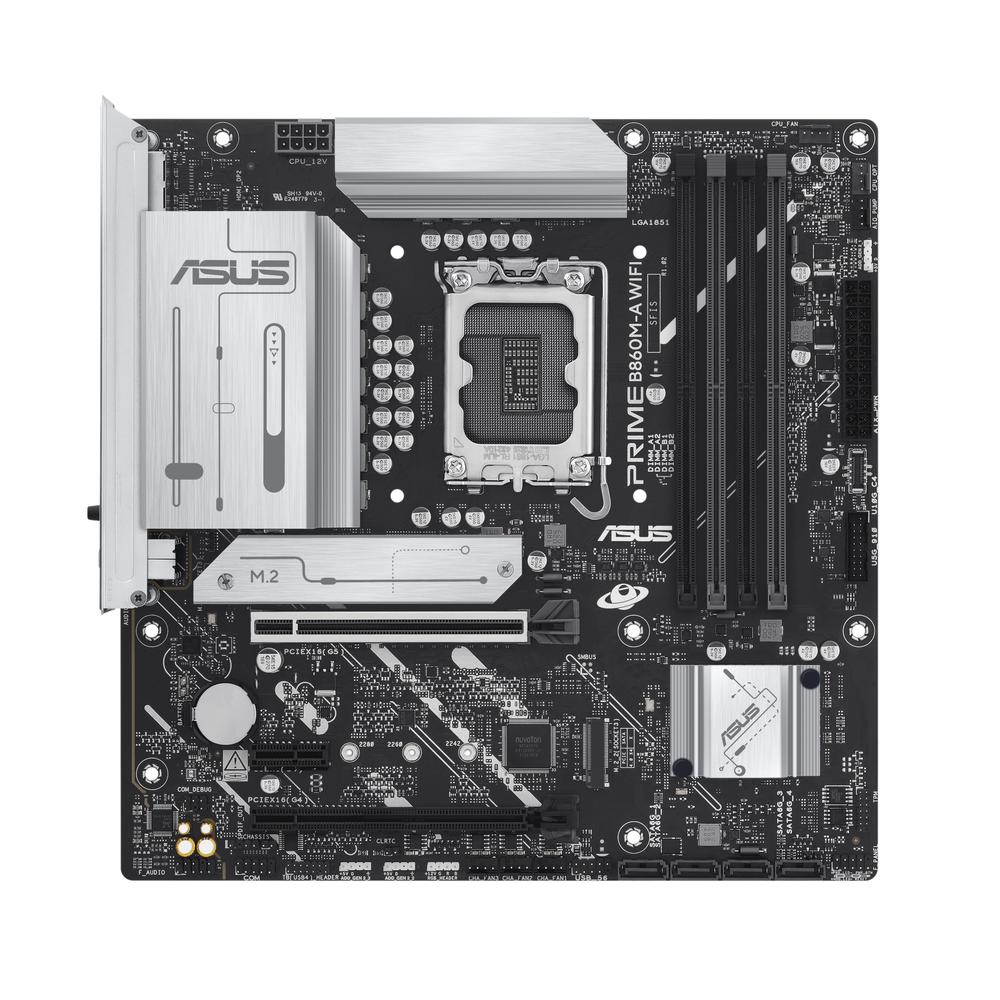

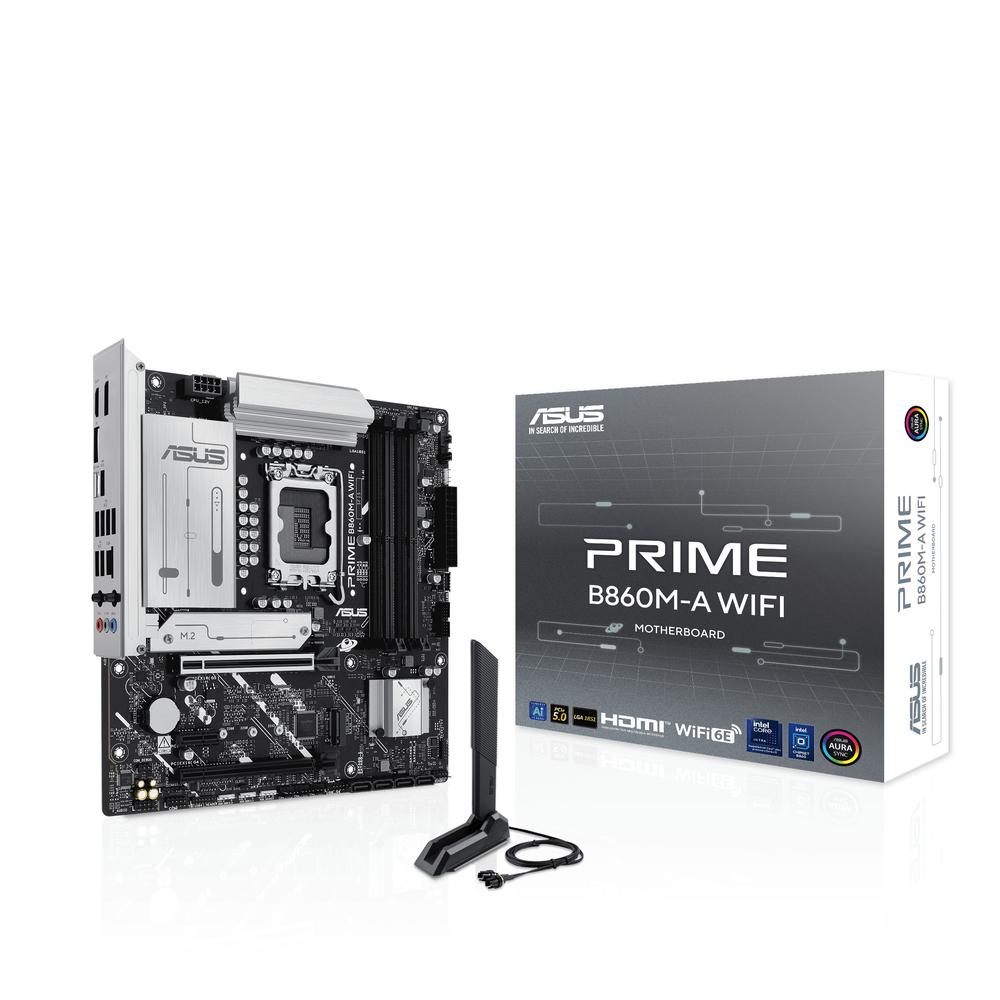

Placa base asus intel prime b860m – a wifi socket 1851 ddr5 x4 max 256gb hdmi displayport matx
209,00 €
Placa base asus intel prime b860m – a
9 disponibles
Descripción
-PROCESADOR
Socket: LGA 1851
Procesadores compatibles: Intel Core Ultra Series 2
Tecnologías soportadas: Intel Turbo Boost 2.0 y Turbo Boost Max 3.0
-CHIPSET
Intel B860
-MEMORIA
Ranuras: 4 x DIMM
Tipo: DDR5
Capacidad máxima: 256 GB
Velocidad soportada: hasta 8666+ MT/s (OC)
Arquitectura: Doble canal
Compatibilidad: Intel XMP, AEMP III
Tipo de memoria: No-ECC, sin búfer, CUDIMM
Función ECC: ECC en chip (On-Die ECC)
-GRÁFICOS
2 x DisplayPort 1.4 (hasta 4K a 60 Hz)
1 x HDMI 2.1 (hasta 4K a 60 Hz)
* Dependen del procesador instalado
-RANURAS DE EXPANSIÓN
1 x PCIe 5.0 x16 (desde CPU)
1 x PCIe 4.0 x16 (x4)
1 x PCIe 4.0 x1
-ALMACENAMIENTO
2 x M.2 (Key M):
– M.2_1 (CPU): 2242/2260/2280, PCIe 5.0 x4
– M.2_2 (chipset): 2242/2260/2280, PCIe 4.0 x4
4 x puertos SATA 6Gb/s
RAID soportado: 0/1/5/10
-RED
LAN: Realtek 2.5Gb Ethernet
Protección: ASUS LANGuard
-CONEXIONES INALÁMBRICAS
Wi-Fi 6E (2×2, 802.11ax, bandas 2.4/5/6 GHz)
Bluetooth: 5.3
-USB
Panel trasero (8 puertos):
– 1 x USB 20Gbps (Type-C)
– 1 x USB 10Gbps (Type-A)
– 2 x USB 5Gbps (Type-A)
– 4 x USB 2.0 (Type-A)
Panel frontal (5 puertos):
– 1 x conector USB 10Gbps (Type-C)
– 1 x header USB 5Gbps (2 puertos)
– 1 x header USB 2.0 (2 puertos)
-AUDIO
Codec: Realtek 7.1 Surround HD Audio
Compatibilidad: hasta 24-bit / 192 kHz
Funciones: detección de jack, multistreaming, retasking frontal
Características:
– Blindaje de audio
– Capacitores premium
– Capas dedicadas en PCB
-PANEL POSTERIOR
1 x USB 20Gbps (Type-C)
1 x USB 10Gbps (Type-A)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
2 x DisplayPort
1 x HDMI
1 x Módulo Wi-Fi
1 x Puerto Ethernet 2.5Gb
3 x conectores de audio
-CONECTORES INTERNOS
Ventiladores:
– 1 x conector CPU fan 4-pin
– 1 x conector CPU OPT fan 4-pin
– 1 x conector bomba AIO 4-pin
– 3 x conectores chasis fan 4-pin
Alimentación:
– 1 x ATX 24-pin
– 1 x EPS 8-pin
Almacenamiento:
– 2 x M.2 (Key M)
– 4 x puertos SATA 6Gb/s
USB:
– 1 x conector USB 10Gbps (Type-C)
– 1 x header USB 5Gbps (2 puertos)
– 1 x header USB 2.0 (2 puertos)
Otros:
– 3 x headers Addressable Gen2
– 1 x header Aura RGB
– 1 x header Clear CMOS
– 1 x header intrusión de chasis
– 1 x header COM
– 1 x header audio frontal (F_AUDIO)
– 1 x header S/PDIF
– 1 x header TPM SPI (14-1 pin)
– 1 x header sistema frontal (10-1 pin)
– 1 x header Thunderbolt (USB4)
-CARACTERÍSTICAS ESPECIALES
ASUS 5X Protection III
– DIGI+ VRM
– ESD Guards
– LANGuard
– Protección contra sobrevoltaje
– SafeSlot
– I/O trasero en acero inoxidable
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
Solución térmica:
– Disipadores en M.2 y VRM
ASUS EZ DIY
– ProCool
– I/O Shield preinstalado
Iluminación:
– Aura RGB header
– Addressable Gen2 headers
-SOFTWARE
ASUS Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Ahorro de energía)
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 días)
WinRAR (40 días)
-BIOS
UEFI AMI BIOS
Tamaño: 256 Mb (128+128)
Funciones: CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey
-MANEJABILIDAD
WOL by PME, PXE
-ACCESORIOS
2 x cables SATA 6Gb/s
1 x antena ASUS WiFi Q
1 x set de goma M.2
1 x kit de tornillos M.2
1 x guía rápida
-SISTEMA OPERATIVO SOPORTADO
Windows 11 (22H2 en adelante)
Windows 10 64-bit (21H2 en adelante)
-DIMENSIONES
Formato: micro-ATX
Tamaño: 24.4 cm x 24.4 cm (9.6” x 9.6”)
